W903

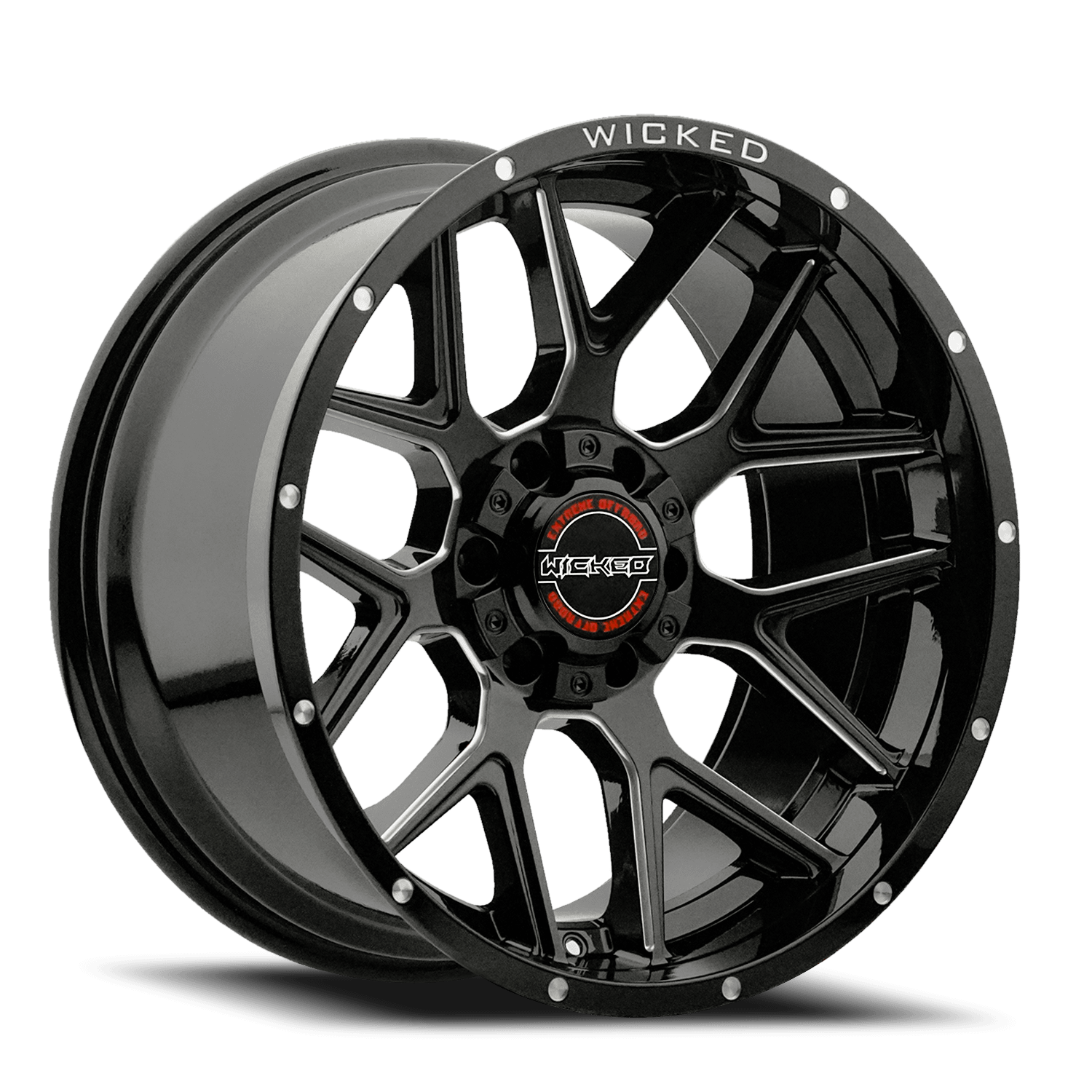

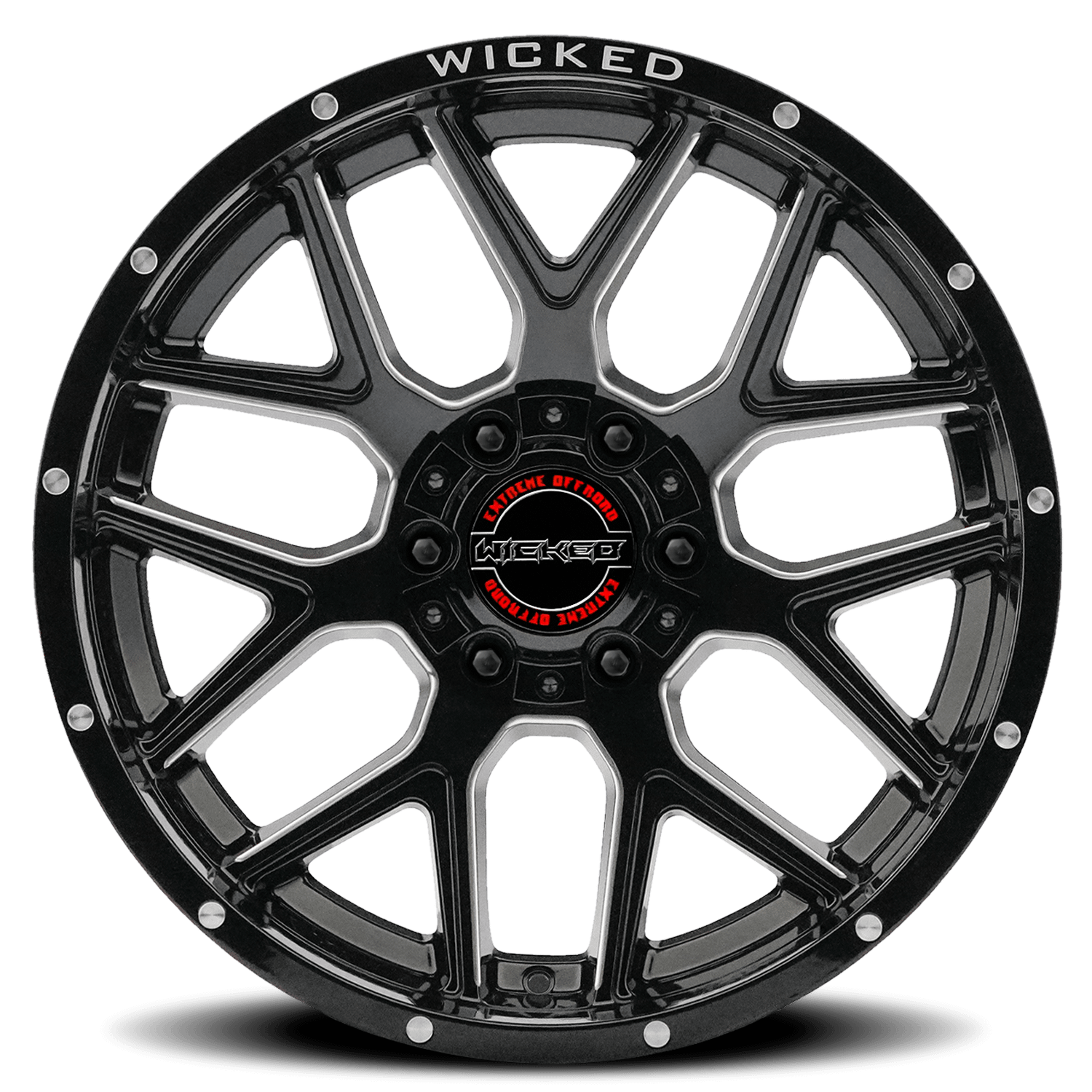

Gloss Black w/ Milled Windows Rivets
SIZES
20” x 10”
20” x 12”
22” x 12”
20” x 10”
20” x 12”
22” x 12”
Additional Finishes
W903 Specificatons
| PART# | SIZE | BOLT PATTERN | BOLT PATTERN 2 | OFFSET | BORE | LOAD RATING | FINISH | CAP PART# |
|---|---|---|---|---|---|---|---|---|
| W903 200 550 -12GBMW | 20" x 10" | 5x127 | -12 | 71.5 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1033~81196 | |
| W903 200 555 -24GBMW | 20" x 10" | 5x139.7 | -24 | 108 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1034~81197 | |
| W903 200 653 -12GBMW | 20" x 10" | 6x135 | -12 | 87.1 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1035~81198 | |
| W903 200 655 -12GBMW | 20" x 10" | 6x139.7 | -12 | 106.2 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1035~81198 | |
| W903 200 655 -24GBMW | 20" x 10" | 6x139.7 | -24 | 106.2 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1035~81198 | |
| W903 200 865 -24GBMW | 20" x 10" | 8x165.1 | -24 | 125.2 | 3650 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1036~81199 | |
| W903 200 867 -24GBMW | 20" x 10" | 8x170 | -24 | 125.2 | 3650 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1036~81199 | |
| W903 200 880 -24GBMW | 20" x 10" | 8x180 | -24 | 125.2 | 3650 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1036~81199 | |
| W903 202 555 -44GBMW | 20" x 12" | 5x139.7 | -44 | 108 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1034~81197 | |
| W903 202 653 -44GBMW | 20" x 12" | 6x135 | -44 | 87.1 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1035~81198 | |
| W903 202 655 -44GBMW | 20" x 12" | 6x139.7 | -44 | 106.2 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1035~81198 | |
| W903 202 865 -44GBMW | 20" x 12" | 8x165.1 | -44 | 125.2 | 3650 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1036~81199 | |
| W903 202 867 -44GBMW | 20" x 12" | 8x170 | -44 | 125.2 | 3650 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1036~81199 | |
| W903 202 880 -44GBMW | 20" x 12" | 8x180 | -44 | 125.2 | 3650 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1036~81199 | |
| W903 222 555 -44GBMW | 22" x 12" | 5x139.7 | -44 | 108 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1034~81197 | |
| w903 222 653 -44GBMW | 22" x 12" | 6x135 | -44 | 87.1 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1035~81198 | |
| W903 222 655 -44GBMW | 22" x 12" | 6x139.7 | -44 | 106.2 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1035~81198 | |
| W903 222 865 -44GBMW | 22" x 12" | 8x165.1 | -44 | 125.2 | 3650 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1036~81199 | |
| W903 222 867 -44GBMW | 22" x 12" | 8x170 | -44 | 125.2 | 3650 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1036~81199 | |
| W903 222 880 -44GBMW | 22" x 12" | 8x180 | -44 | 125.2 | 3650 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | CAP1036~81199 | |
| W903B200050-19GBMW | 20" x 10" | 5x127 | 5x139.7 | -19 | 87.1 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | |
| W903B200267-19GBMW | 20" x 10" | 6x135 | 6x139.7 | -19 | 106.1 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | |
| W903B220050-19GBMW | 22" x 10" | 5x127 | 5x139.7 | -19 | 87.1 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | |
| W903B220267-19GBMW | 22" x 10" | 6x135 | 6x139.7 | -19 | 106.1 | 2500 | Gloss Black w/ Milled Windows-Milled Name-Milled Rivets | |
| W903 200 550 -12GND | 20" x 10" | 5x127 | -12 | 71.5 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1033~81196 | |
| W903 200 555 -24GND | 20" x 10" | 5x139.7 | -24 | 108 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1034~81197 | |
| W903 200 653 -12GND | 20" x 10" | 6x135 | -12 | 87.1 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1035~81198 | |
| W903 200 655 -12GND | 20" x 10" | 6x139.7 | -12 | 106.2 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1035~81198 | |
| W903 200 655 -24GND | 20" x 10" | 6x139.7 | -24 | 106.2 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1035~81198 | |
| W903 200 865 -24GND | 20" x 10" | 8x165.1 | -24 | 125.2 | 3650 | Gloss Black w/ Milled-No Dimples | CAP1036~81199 | |
| W903 200 867 -24GND | 20" x 10" | 8x170 | -24 | 125.2 | 3650 | Gloss Black w/ Milled-No Dimples | CAP1036~81199 | |
| W903 200 880 -24GND | 20" x 10" | 8x180 | -24 | 125.2 | 3650 | Gloss Black w/ Milled-No Dimples | CAP1036~81199 | |
| W903 202 555 -44GND | 20" x 12" | 5x139.7 | -44 | 108 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1034~81197 | |
| W903 202 653 -44GND | 20" x 12" | 6x135 | -44 | 87.1 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1035~81198 | |
| W903 202 655 -44GND | 20" x 12" | 6x139.7 | -44 | 106.2 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1035~81198 | |
| W903 202 865 -44GND | 20" x 12" | 8x165.1 | -44 | 125.2 | 3650 | Gloss Black w/ Milled-No Dimples | CAP1036~81199 | |
| W903 202 867 -44GND | 20" x 12" | 8x170 | -44 | 125.2 | 3650 | Gloss Black w/ Milled-No Dimples | CAP1036~81199 | |
| W903 202 880 -44GND | 20" x 12" | 8x180 | -44 | 125.2 | 3650 | Gloss Black w/ Milled-No Dimples | CAP1036~81199 | |
| W903 222 555 -44GND | 22" x 12" | 5x139.7 | -44 | 108 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1034~81197 | |
| w903 222 653 -44GND | 22" x 12" | 6x135 | -44 | 87.1 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1035~81198 | |
| W903 222 655 -44GND | 22" x 12" | 6x139.7 | -44 | 106.2 | 2500 | Gloss Black w/ Milled-No Dimples | CAP1035~81198 | |
| W903 222 865 -44GND | 22" x 12" | 8x165.1 | -44 | 125.2 | 3650 | Gloss Black w/ Milled-No Dimples | CAP1036~81199 | |
| W903 222 867 -44GND | 22" x 12" | 8x170 | -44 | 125.2 | 3650 | Gloss Black w/ Milled-No Dimples | CAP1036~81199 | |
| W903 222 880 -44GND | 22" x 12" | 8x180 | -44 | 125.2 | 3650 | Gloss Black w/ Milled-No Dimples | CAP1036~81199 | |
| W903 200 550 -12MB | 20" x 10" | 5x127 | -12 | 71.5 | 2500 | Satin Black w/ Milled Dimples | CAP1037~81200 | |
| W903 200 555 -24MB | 20" x 10" | 5x139.7 | -24 | 108 | 2500 | Satin Black w/ Milled Dimples | CAP1038~81201 | |
| W903 200 653 -12MB | 20" x 10" | 6x135 | -12 | 87.1 | 2500 | Satin Black w/ Milled Dimples | CAP1039~81202 | |
| W903 200 655 -12MB | 20" x 10" | 6x139.7 | -12 | 106.2 | 2500 | Satin Black w/ Milled Dimples | CAP1039~81202 | |
| W903 200 655 -24MB | 20" x 10" | 6x139.7 | -24 | 106.2 | 2500 | Satin Black w/ Milled Dimples | CAP1039~81202 | |
| W903 200 865 -24MB | 20" x 10" | 8x165.1 | -24 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 | |
| W903 200 867 -24MB | 20" x 10" | 8x170 | -24 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 | |
| W903 200 880 -24MB | 20" x 10" | 8x180 | -24 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 | |
| W903 202 655 -44MB | 20" x 12" | 6x139.7 | -44 | 106.2 | 2500 | Satin Black w/ Milled Dimples | CAP1039~81202 | |
| W903 202 865 -44MB | 20" x 12" | 8x165.1 | -44 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 | |
| W903 202 867 -44MB | 20" x 12" | 8x170 | -44 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 | |
| W903 202 880 -44MB | 20" x 12" | 8x180 | -44 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 | |
| W903 222 655 -44MB | 22" x 12" | 6x139.7 | -44 | 106.2 | 2500 | Satin Black w/ Milled Dimples | CAP1039~81202 | |
| W903 222 865 -44MB | 22" x 12" | 8x165.1 | -44 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 | |
| W903 222 867 -44MB | 22" x 12" | 8x170 | -44 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 | |
| W903 222 880 -44MB | 22" x 12" | 8x180 | -44 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 | |
| W903B200050-19RT | 20" x 10" | 5x127 | 5x139.7 | -19 | 87.1 | 2500 | Gloss Black w/ Milled Name-Milled Rivets-Red Tint | |
| W903B200267-19RT | 20" x 10" | 6x135 | 6x139.7 | -19 | 106.1 | 2500 | Gloss Black w/ Milled Name-Milled Rivets-Red Tint | |
| W903B220267-19RT | 22" x 10" | 6x135 | 6x139.7 | -19 | 106.1 | 2500 | Gloss Black w/ Milled Name-Milled Rivets-Red Tint | |
| W903 200 550 -12SB | 20" x 10" | 5x127 | -12 | 71.5 | 2500 | Satin Black | ||
| W903 200 555 -24SB | 20" x 10" | 5x139.7 | -24 | 108 | 2500 | Satin Black | ||
| W903 200 653 -12SB | 20" x 10" | 6x135 | -12 | 87.1 | 2500 | Satin Black | ||
| W903 200 655 -12SB | 20" x 10" | 6x139.7 | -12 | 106.2 | 2500 | Satin Black | ||
| W903 200 655 -24SB | 20" x 10" | 6x139.7 | -24 | 106.2 | 2500 | Satin Black | ||
| W903 200 865 -24SB | 20" x 10" | 8x165.1 | -24 | 125.2 | 3650 | Satin Black | ||
| W903 200 867 -24SB | 20" x 10" | 8x170 | -24 | 125.2 | 3650 | Satin Black | ||
| W903 200 880 -24SB | 20" x 10" | 8x180 | -24 | 125.2 | 3650 | Satin Black | ||
| W903 202 555 -44SB | 20" x 12" | 5x139.7 | -44 | 108 | 2500 | Satin Black | ||
| W903 202 653 -44SB | 20" x 12" | 6x135 | -44 | 87.1 | 2500 | Satin Black | ||
| W903 202 655 -44SB | 20" x 12" | 6x139.7 | -44 | 106.2 | 2500 | Satin Black | ||
| W903 202 865 -44SB | 20" x 12" | 8x165.1 | -44 | 125.2 | 3650 | Satin Black | ||
| W903 202 867 -44SB | 20" x 12" | 8x170 | -44 | 125.2 | 3650 | Satin Black | ||
| W903 202 880 -44SB | 20" x 12" | 8x180 | -44 | 125.2 | 3650 | Satin Black | ||
| W903 222 555 -44SB | 22" x 12" | 5x139.7 | -44 | 108 | 2500 | Satin Black | ||
| w903 222 653 -44SB | 22" x 12" | 6x135 | -44 | 87.1 | 2500 | Satin Black | ||
| W903 222 655 -44SB | 22" x 12" | 6x139.7 | -44 | 106.2 | 2500 | Satin Black | ||
| W903 222 865 -44SB | 22" x 12" | 8x165.1 | -44 | 125.2 | 3650 | Satin Black | ||
| W903 222 867 -44SB | 22" x 12" | 8x170 | -44 | 125.2 | 3650 | Satin Black | ||
| W903 222 880 -44SB | 22" x 12" | 8x180 | -44 | 125.2 | 3650 | Satin Black |
