W909

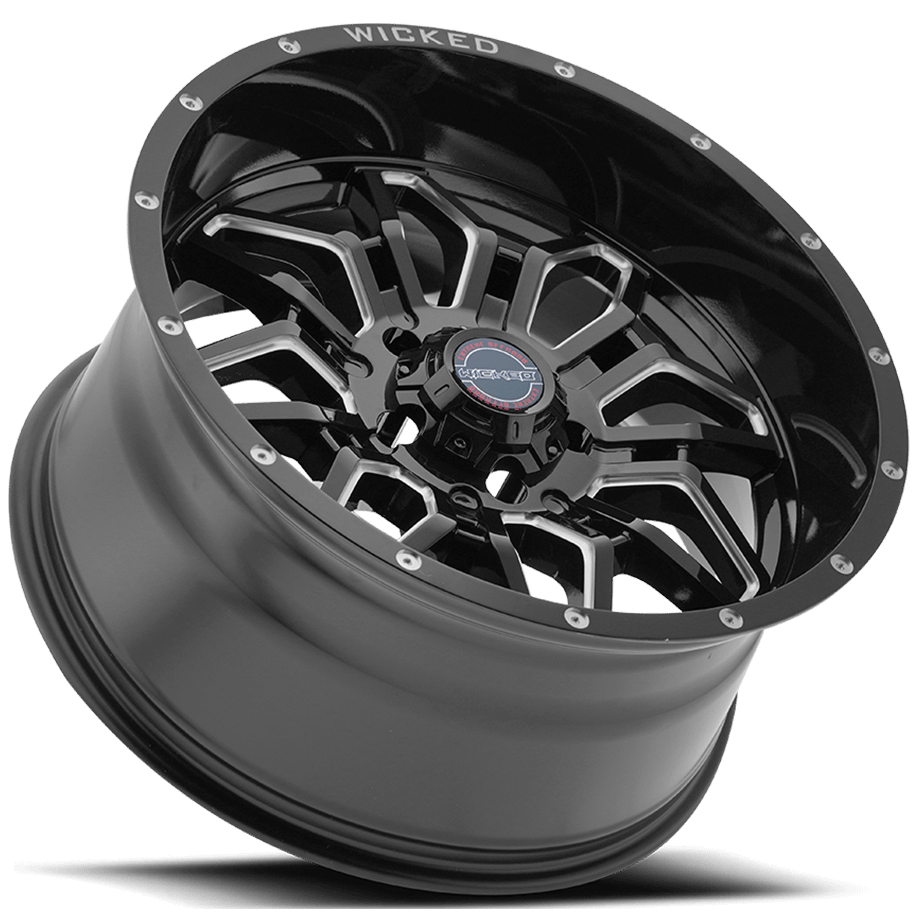

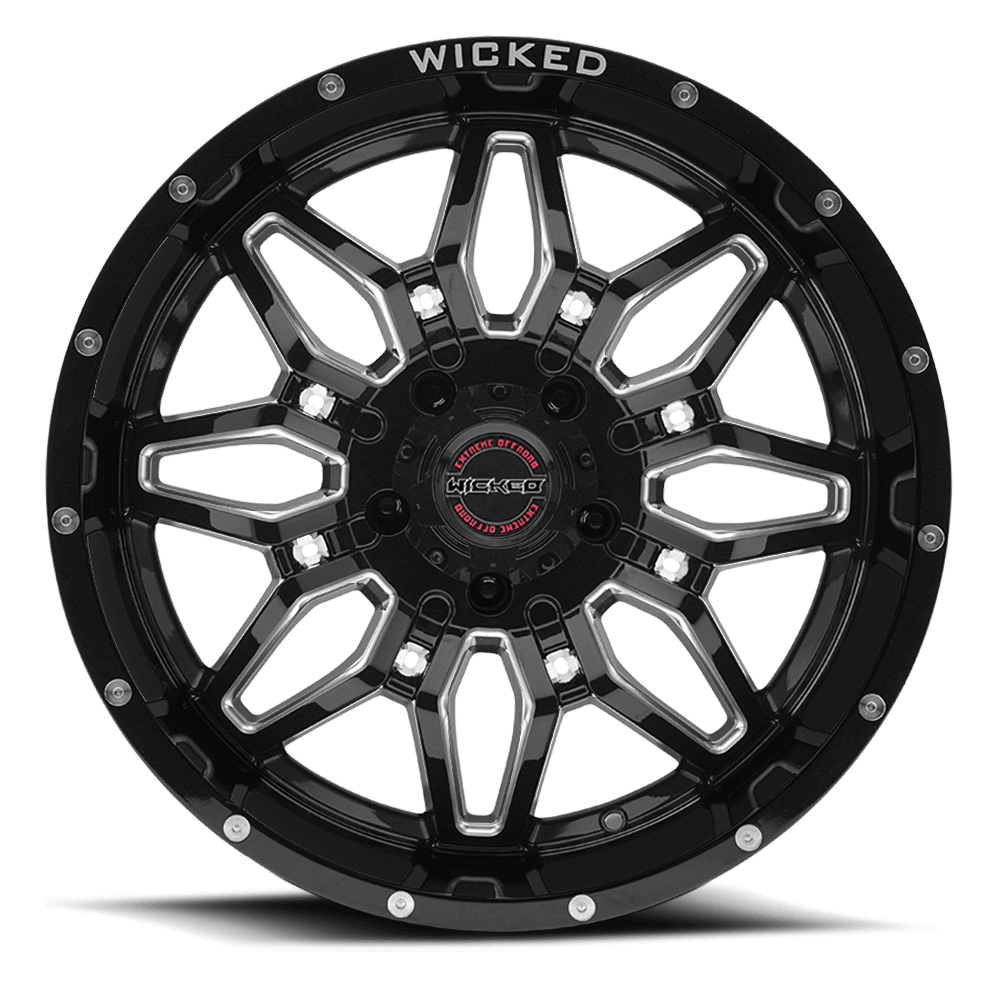

Gloss Black w/ Milled
SIZES
20″ x 9″
20″ x 10″
20″ x 9″
20″ x 10″
Additional Finishes
W909 Specificatons
| PART# | SIZE | BOLT PATTERN | OFFSET | BORE | LOAD RATING | FINISH | CAP PART# |
|---|---|---|---|---|---|---|---|
| W909 200 550 -24GBMW | 20" x 10" | 5x127 | -24 | 71.5 | 2500 | Gloss Black w/ Milled | CAP1033~81196 |
| W909 200 555 -24GBMW | 20" x 10" | 5x139.7 | -24 | 108 | 2500 | Gloss Black w/ Milled | CAP1034~81197 |
| W909 200 653 -24GBMW | 20" x 10" | 6x135 | -24 | 87.1 | 2500 | Gloss Black w/ Milled | CAP1035~81198 |
| W909 200 655 -24GBMW | 20" x 10" | 6x139.7 | -24 | 106.2 | 2500 | Gloss Black w/ Milled | CAP1035~81198 |
| W909 200 865 -24GBMW | 20" x 10" | 8x165.1 | -24 | 125.2 | 3650 | Gloss Black w/ Milled | CAP1036~81199 |
| W909 200 867 -24GBMW | 20" x 10" | 8x170 | -24 | 125.2 | 3650 | Gloss Black w/ Milled | CAP1036~81199 |
| W909 200 880 -24GBMW | 20" x 10" | 8x180 | -24 | 125.2 | 3650 | Gloss Black w/ Milled | CAP1036~81199 |
| W909 290 559 +00GBMW | 20" x 9" | 5x150 | 0 | 110 | 2500 | Gloss Black w/ Milled | CAP1034~81197 |
| W909 290 653 -12GBMW | 20" x 9" | 6x135 | -12 | 87.1 | 2500 | Gloss Black w/ Milled | CAP1035~81198 |
| W909 290 655 -12GBMW | 20" x 9" | 6x139.7 | -12 | 106.2 | 2500 | Gloss Black w/ Milled | CAP1035~81198 |
| W909 290 655 +00GBMW | 20" x 9" | 6x139.7 | 0 | 106.2 | 2500 | Gloss Black w/ Milled | CAP1035~81198 |

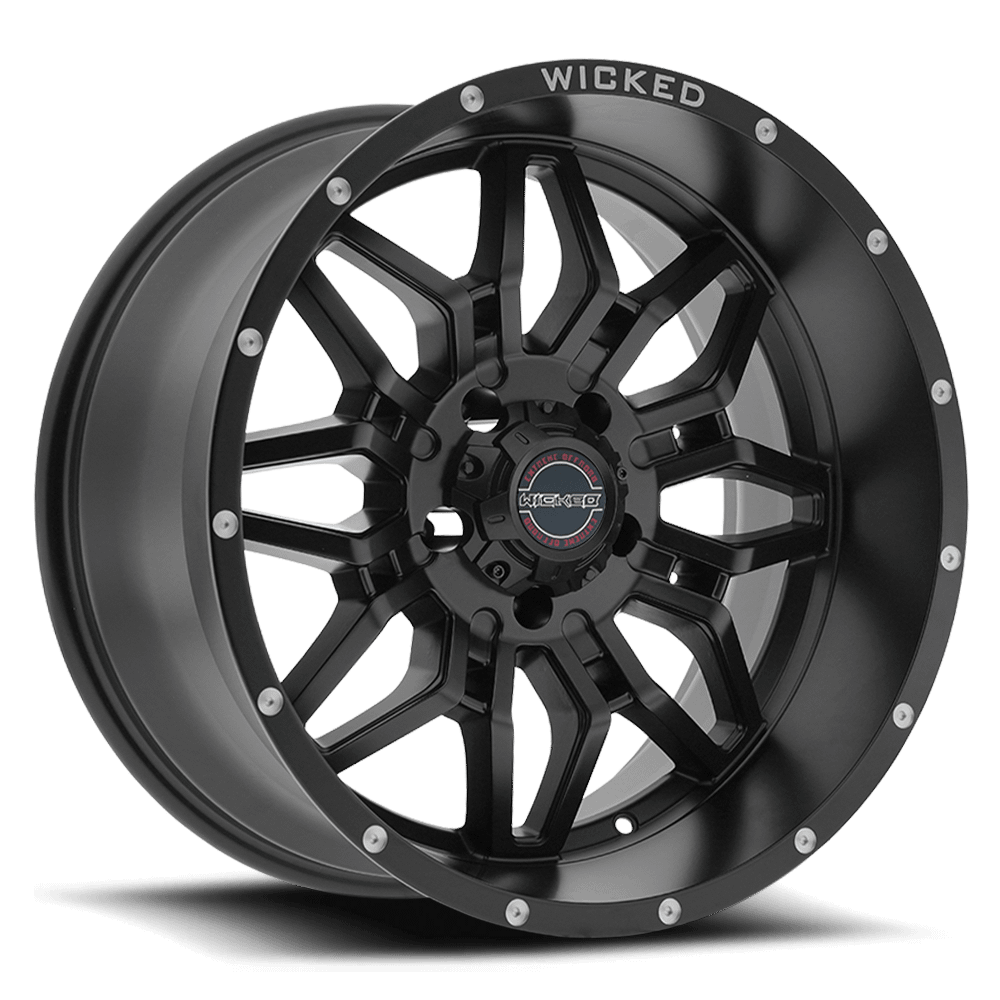

| W909 200 555 -24MB | 20" x 10" | 5x139.7 | -24 | 108 | 2500 | Satin Black w/ Milled Dimples | CAP1038~81201 |
| W909 200 655 -24MB | 20" x 10" | 6x139.7 | -24 | 106.2 | 2500 | Satin Black w/ Milled Dimples | CAP1039~81202 |
| W909 200 865 -24MB | 20" x 10" | 8x165.1 | -24 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 |
| W909 200 867 -24MB | 20" x 10" | 8x170 | -24 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 |
| W909 200 880 -24MB | 20" x 10" | 8x180 | -24 | 125.2 | 3650 | Satin Black w/ Milled Dimples | CAP1040~81203 |
| W909 290 655 -12MB | 20" x 9" | 6x139.7 | -12 | 106.2 | 2500 | Satin Black w/ Milled Dimples | CAP1039~81202 |
| W909 290 655 +00MB | 20" x 9" | 6x139.7 | 0 | 106.2 | 2500 | Satin Black w/ Milled Dimples | CAP1039~81202 |
